Phares LED à haute luminosité : Une luminosité supérieure pour une sécurité accrue

Understanding What “High-Lumen” Really Means

The term high-lumen LED headlights is frequently used in the aftermarket lighting industry, but lumen numbers alone do not guarantee better visibility or safety. For professional buyers, the key question is not “How many lumens are printed on the box?” but rather:

• How many effective lumens reach the road surface?

• Is the beam pattern controlled?

• Can the vehicle’s housing handle the thermal and electrical load?

In technical terms, lumen (lm) measures total luminous flux emitted by a light source. Many aftermarket LED bulbs claim 8,000–20,000 lm per pair. However, real usable output after optical loss typically ranges between:

• 3,000–4,500 effective lumens per bulb (low beam)

• 4,000–6,000 effective lumens per bulb (high beam)

The difference between rated lumens and effective lumens is determined by chip efficiency, optical alignment, thermal stability, and driver regulation.

Brightness vs. Road Visibility: The Optical Factor

Increasing lumen output without controlling beam shape creates glare rather than visibility. High-lumen LED headlights only improve safety when:

1. The LED chip position matches the halogen filament geometry.

2. The light-emitting surface width is within ±0.2 mm of OEM filament thickness.

3. The reflector or projector housing can properly focus the light.

In reflector housings, excessive lumen output often causes upward scatter. In projector housings, higher output is better tolerated, but cutoff sharpness must remain intact.

For distributors supplying multiple vehicle platforms, it is important to evaluate:

• Beam cutoff stability

• Hotspot intensity (lux measurement at 25 m)

• Foreground illumination balance

A properly engineered high-lumen LED headlight system improves down-road visibility without increasing glare to oncoming traffic.

Thermal Management: The Real Limiting Factor

High output generates higher junction temperatures. Most automotive-grade LED chips operate within:

• Junction temperature (Tj): ≤150°C max

• Optimal performance zone: 85–120°C

If thermal dissipation is insufficient, luminous flux drops due to thermal decay, often by 15–30% within minutes.

Professional-grade high-lumen LED headlights typically use:

• Aviation aluminum heat sinks

• Copper heat pipes

• Active cooling fans (8,000–12,000 RPM)

• Intelligent temperature control drivers

For workshops and importers, fan reliability and dust protection (IP rating) are critical. Passive cooling designs are more durable but may limit maximum lumen output.

Power Consumption and Electrical Stability

Brightness is closely linked to wattage. Common power ranges include:

• Standard LED retrofit: 25–35W per bulb

• High-lumen LED headlights: 45–65W per bulb

However, increasing wattage without stable current regulation may trigger:

• CANBUS errors

• Flickering

• Premature driver failure

Quality high-lumen LED headlights use constant-current drivers operating within:

• Input voltage range: 9–16V (12V systems)

• Voltage tolerance for heavy-duty applications: up to 24V

For distributors serving European vehicles, integrated CANBUS compatibility is often mandatory due to stricter bulb monitoring systems.

Color Temperature and Perceived Brightness

Many buyers assume higher Kelvin equals brighter light. This is incorrect.

Typical color temperature ranges:

• 4300K–5000K: OEM-like white

• 5500K–6000K: Cool white (common aftermarket choice)

• 6500K+: Bluish tone, reduced wet-road visibility

From a visibility perspective, 5000K–6000K provides optimal contrast without excessive glare. Above 6500K, scatter increases in fog and rain.

For safety-oriented product positioning, high-lumen LED headlights should prioritize balanced spectrum rather than extreme color temperature.

High-Lumen LED Headlights in Different Applications

1. Rural and Highway Driving

Long-range illumination is critical. High beam intensity and beam reach become priority metrics.

Key evaluation points:

• Lux value at 50 meters

• Beam uniformity

• High-speed stability

2. Urban Driving

Excessive brightness may increase glare in reflective traffic environments. Controlled low beam cutoff is more important than raw lumen output.

3. Off-Road and Utility Vehicles

Higher lumen output (5,000+ effective lumens per bulb) is acceptable when there is no oncoming traffic concern. Thermal resistance and vibration durability become primary factors.

Compliance and Road Legality

In many markets (EU, Australia, parts of Asia), headlight systems must comply with:

• ECE R112 (headlamp performance)

• ECE R37 / R128 (light sources)

Retrofit high-lumen LED headlights may not be road-legal unless the entire headlamp assembly is certified.

For importers, it is important to distinguish between:

• DOT marking (self-certification in US market)

• E-mark certification (type approval in EU)

Brightness alone does not ensure regulatory compliance. Beam conformity is the determining factor.

Common Misconceptions in the Wholesale Market

“Higher Lumens Always Mean Better Product”

Not necessarily. Excessive lumen claims (e.g., 20,000 lm per pair at 40W) often indicate unrealistic laboratory ratings.

“Fan Cooling Is Always Better”

Active cooling allows higher output but introduces mechanical wear risk. For hot climates, dust-sealed fan systems are necessary.

“More Wattage = More Brightness”

Only if thermal management and driver efficiency support stable output.

Practical Evaluation Checklist for Buyers

When sourcing high-lumen LED headlights, professional buyers should verify:

1. Actual power consumption (measured, not printed)

2. Thermal structure (fan vs passive)

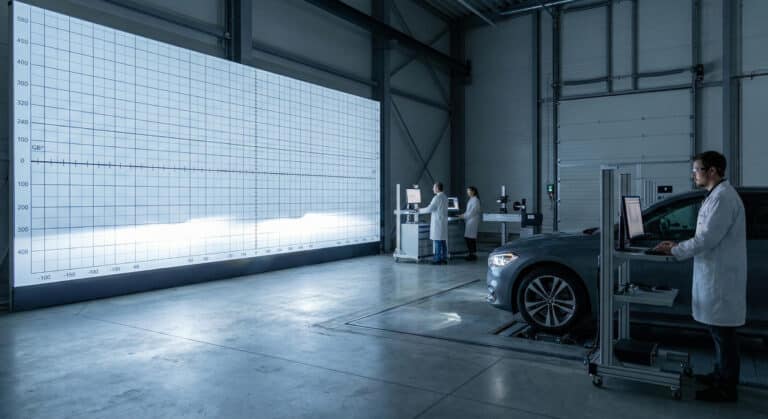

3. Beam test photos at 5 m and 25 m

4. EMI testing results

5. Waterproof rating (IP65–IP68)

6. Driver protection features (over-voltage, short-circuit)

Requesting photometric test data is more reliable than relying on marketing lumen numbers.

The Balance Between Brightness and Safety

High-lumen LED headlights can significantly enhance driving safety when engineered correctly. The improvement comes from:

• Increased road illumination distance

• Better peripheral visibility

• Stable output under high temperature

However, uncontrolled brightness leads to glare, legal risks, and reduced user satisfaction.

For distributors and workshops, the competitive advantage lies not in selling the highest lumen number, but in selecting products that balance:

• Précision optique

• Thermal durability

• Electrical stability

• Regulatory awareness

When these four factors align, high-lumen LED headlights deliver measurable safety improvement rather than just higher specifications on paper.
